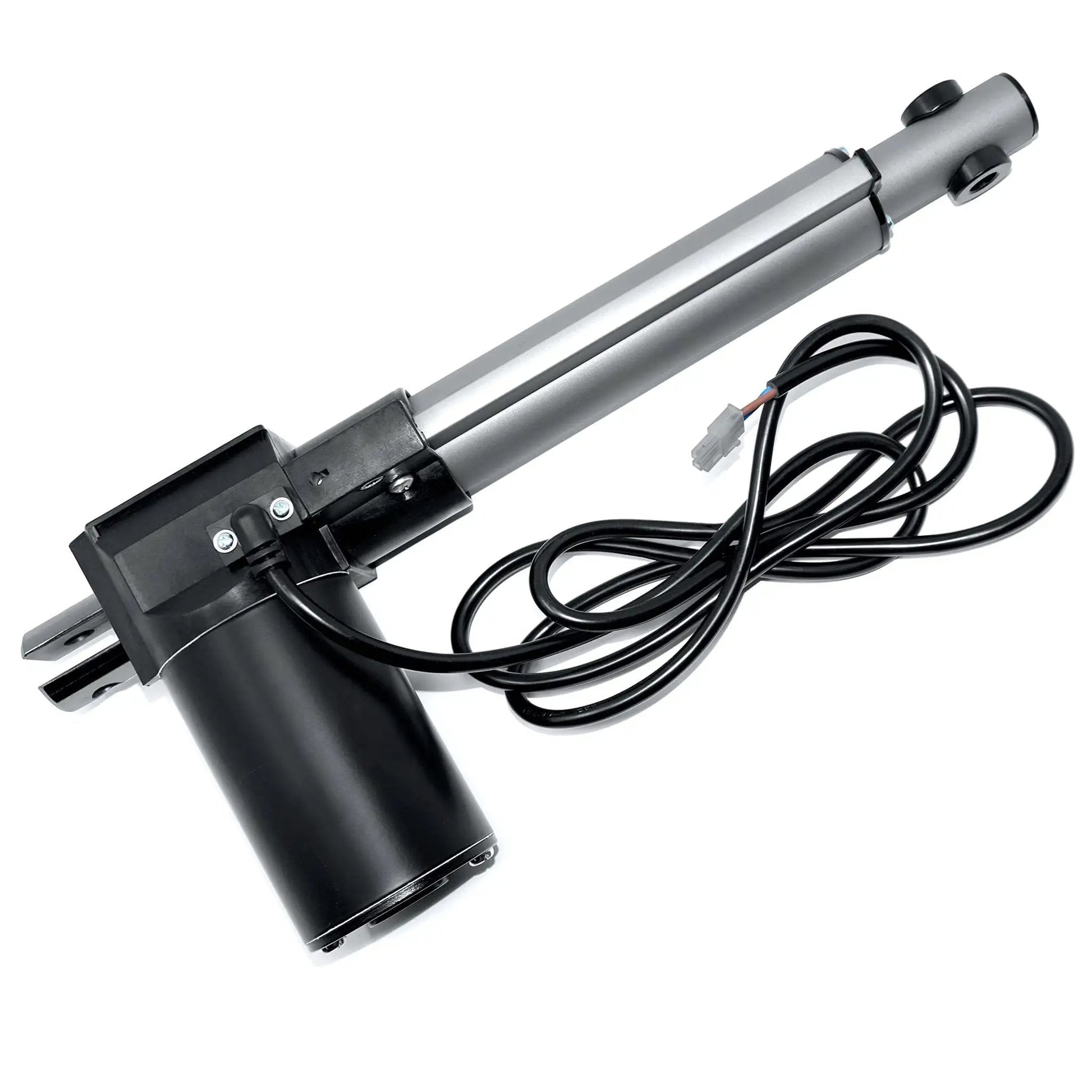

• 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 By Progressive Automations, front view

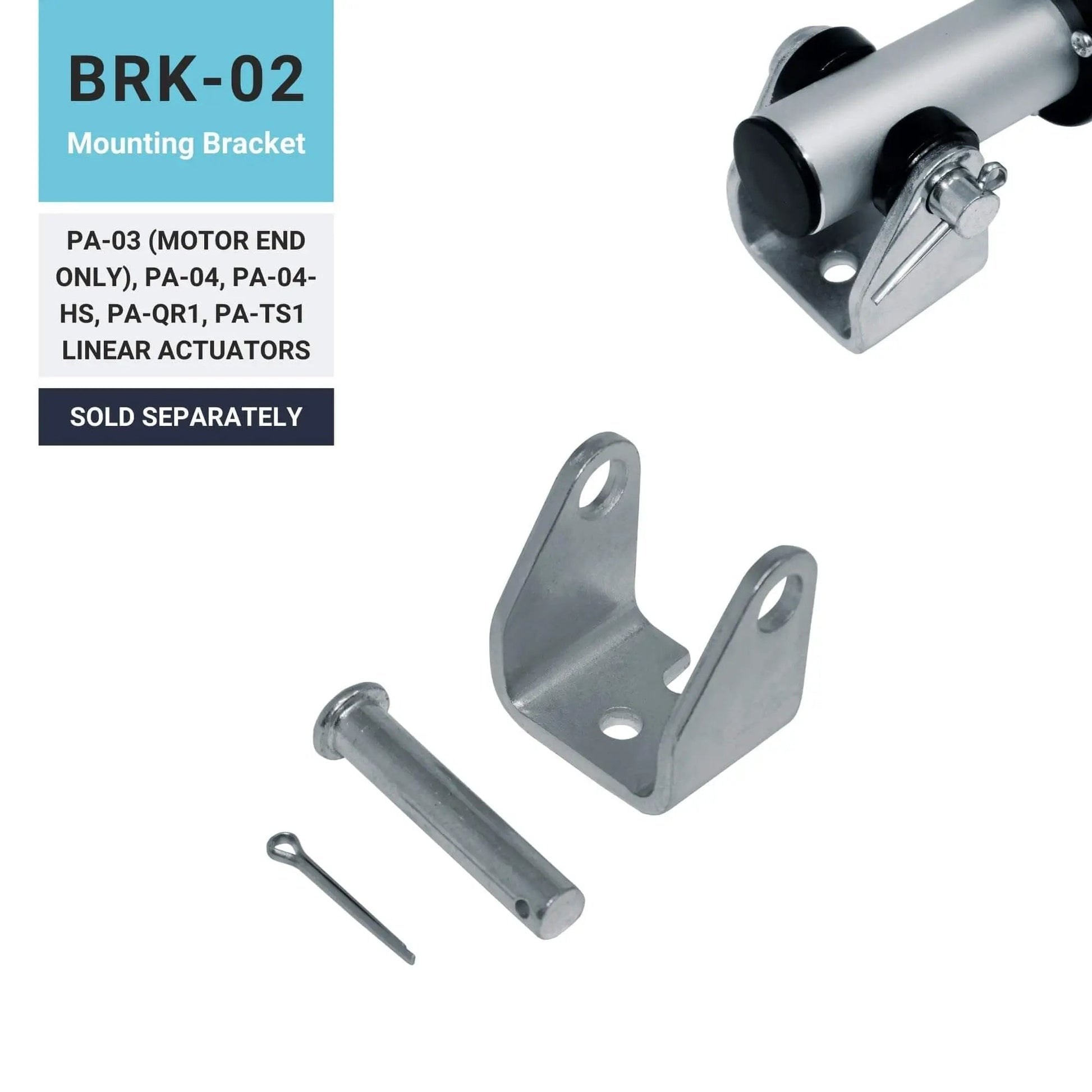

  • BRK-02 mounting bracket for 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 By Progressive Automations Durable Stroke And High Precision For Heavy Duty Projects

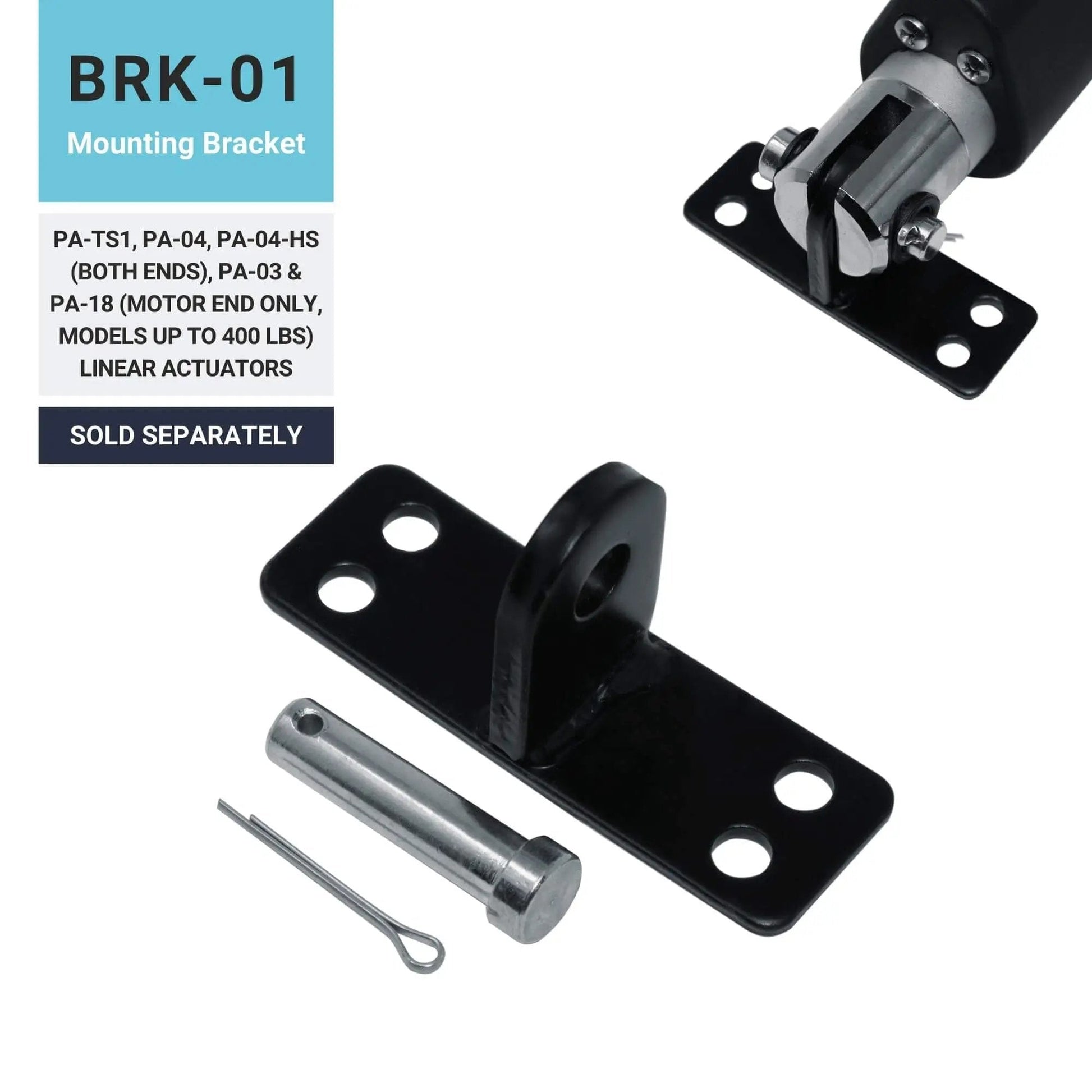

  • Mounting bracket BRK-01 for 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical Robotics

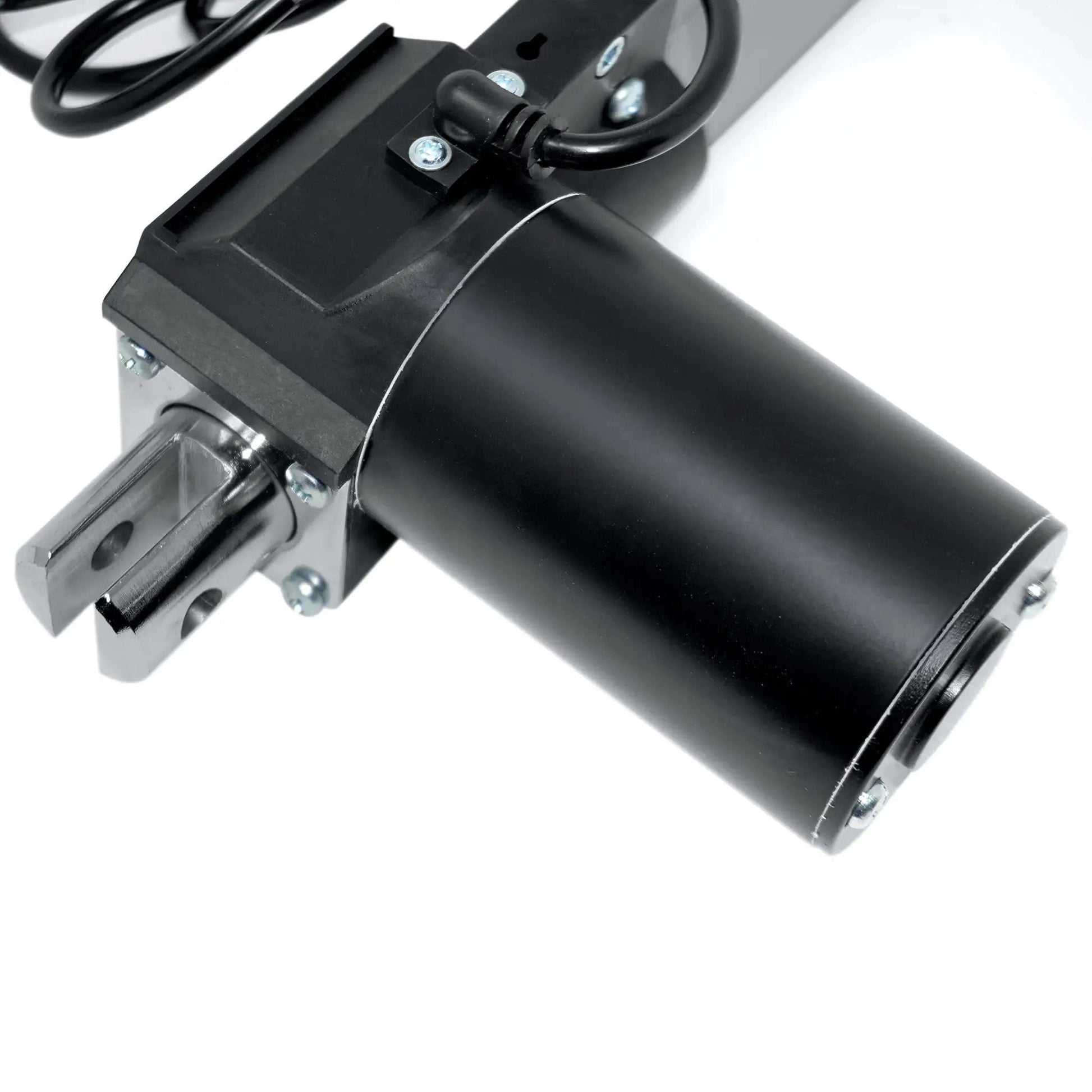

  • Close-up of 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600

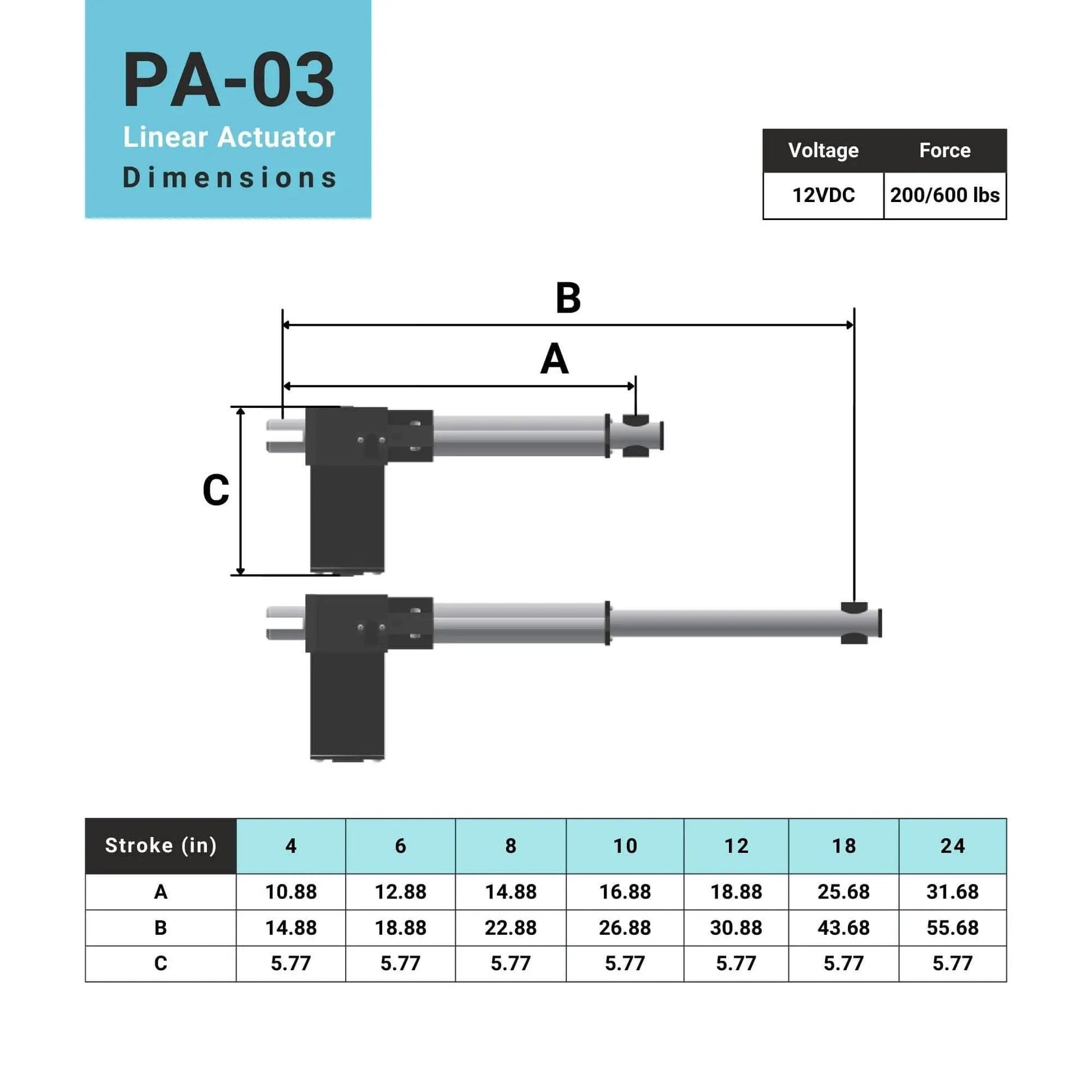

  • Diagram of 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600

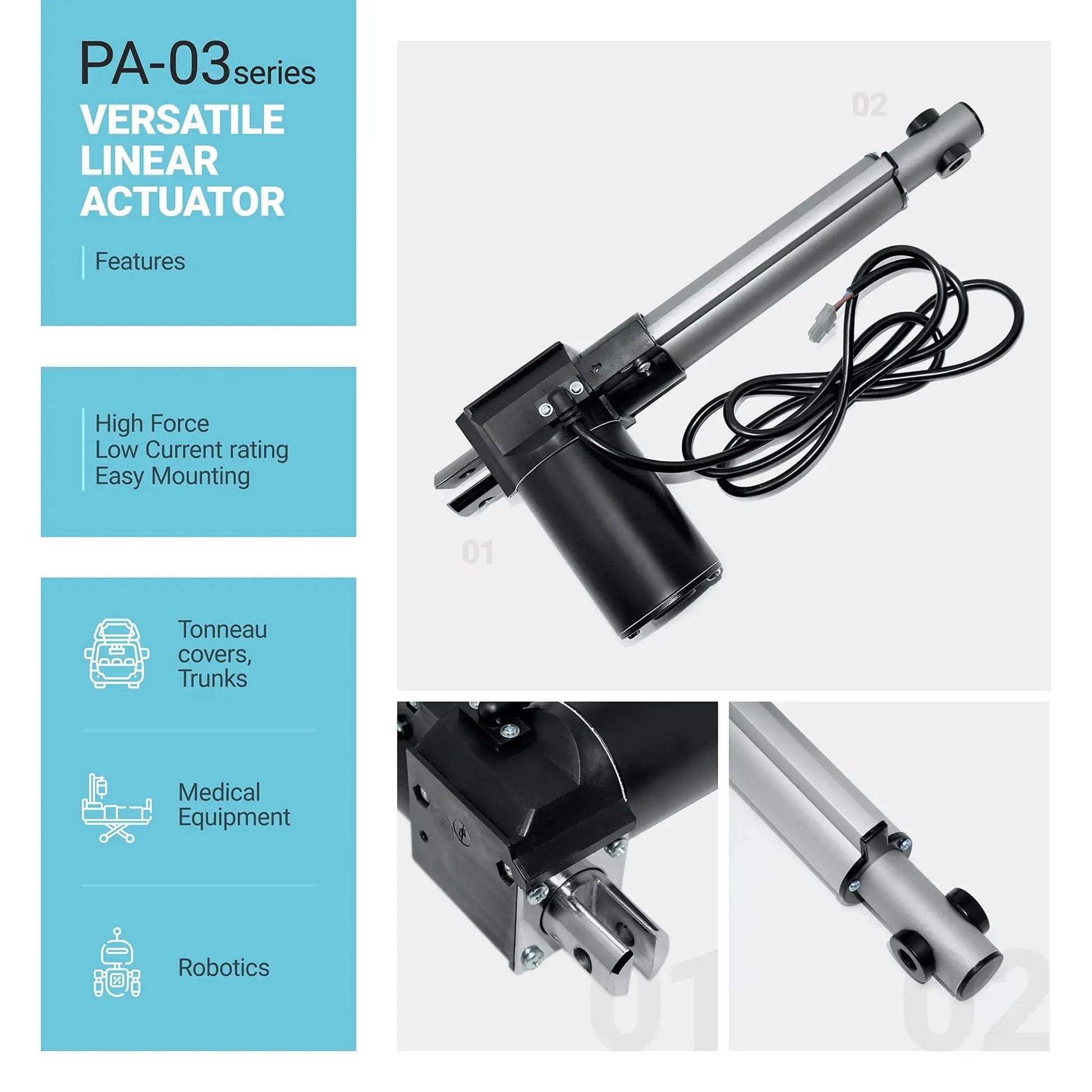

  • 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 side view
  • Applications of 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 shown in smart furniture, medical bed, and trunk lift system.

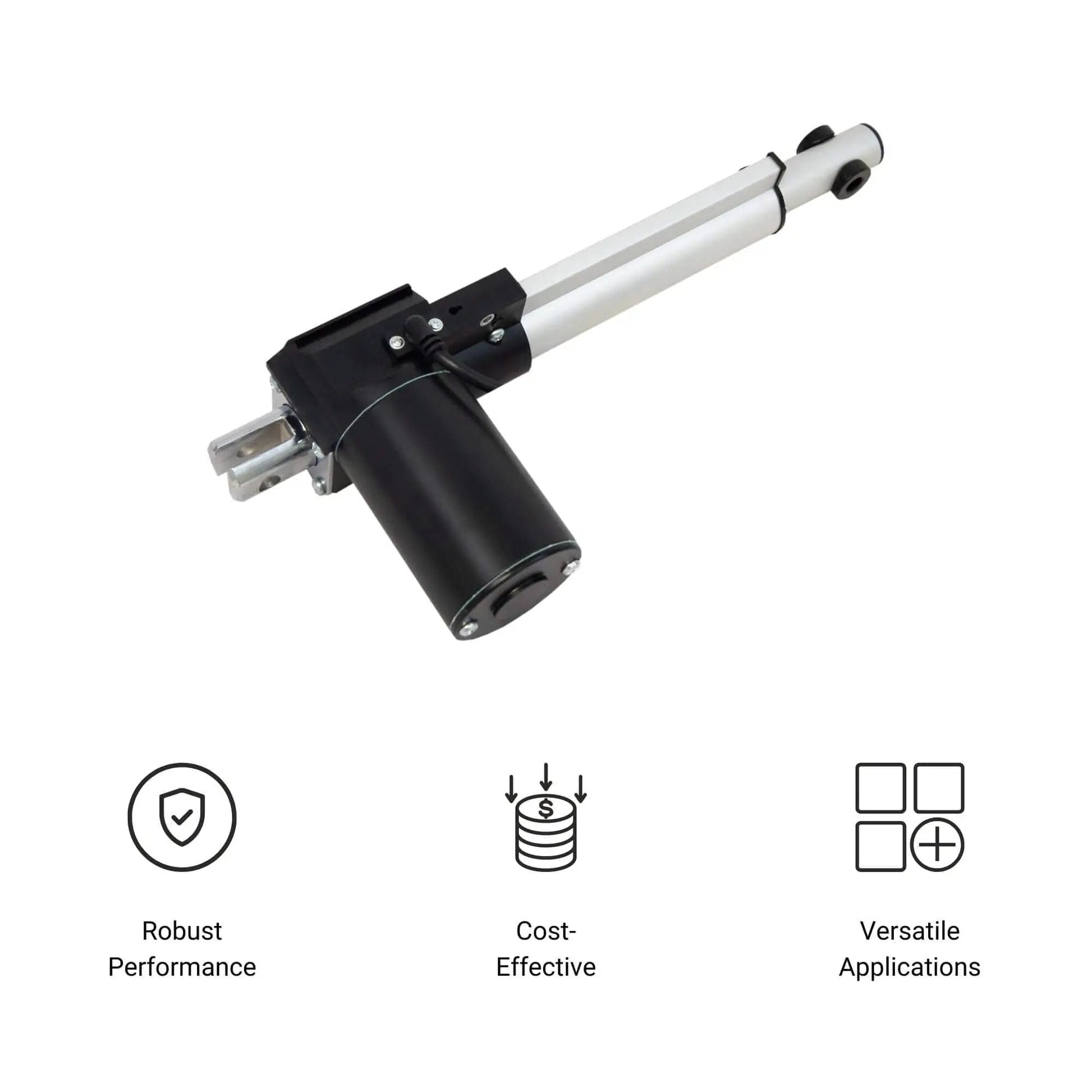

  • 12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 By Progressive Automations
1 8

Bearings Canada

12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 By Progressive Automations Durable Stroke And High Precision For Heavy Duty Projects

12 Inch Stroke 600 Lb 12V Linear Actuator With Low Current DC Motor For Automotive Medical And Robotics PA-03-12-600 By Progressive Automations Durable Stroke And High Precision For Heavy Duty Projects

$386.13 CAD
$1,909.14 CAD $386.13 CAD
Sale Sold out
Shipping calculated at checkout.
Heavy-Duty 12V Linear Actuator, 12 Inch Stroke, 600 lb
✔️ 12V DC, 12 in stroke, 600 lb, single unit, CE/RoHS

This compact, high-capacity 12V linear actuator brings precise push/pull motion to automotive, medical, robotics, and automation projects. Built for durability, it handles heavy loads with quiet operation and low current draw, making it suitable for battery-powered setups and space-constrained installations.

✅ Stroke: 12 in (304.8 mm)
✅ Force: 600 lb (2,669 N)
✅ Voltage: 12 VDC
✅ Connector: 2-Pin Molex Mini-Fit Jr
✅ Certifications: CE, RoHS
✅ Stroke range: 4 in to 24 in (101.6-609.6 mm)

💡 What is a good long-tail question about 12V linear actuators in heavy-duty machines? This handy device offers reliable motion for lifting and positioning in automotive, medical, robotics, and industrial furniture. - Handy for seat adjustments and bed positioning
- Enables precise control under load
- Low current draw helps battery-powered setups
- Easy integration with standard 2-pin Molex Mini-Fit Jr connectors
