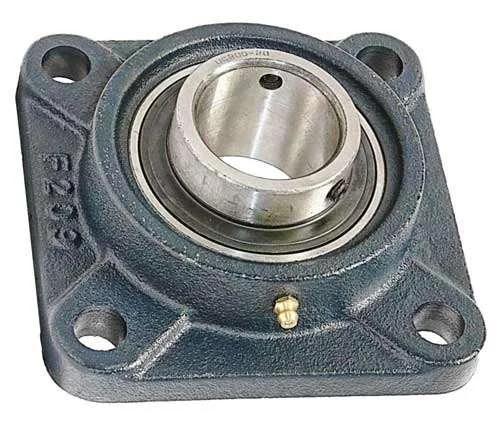

1-3/4 Bearing UCF209-28 + Square Flanged Housing Mounted Bearing

1-3/4 Bearing UCF209-28 + Square Flanged Housing Mounted Bearing

$57.09 CAD
$77.07 CAD $57.09 CAD
Sale Sold out
Shipping calculated at checkout.
UCF209-28 Four Bolt Flange Unit
Set Screw Type
1 3/4" inch Inner Diameter


UCF209-28 Four Bolt Flange Unit, bearing is Set Screw Type, Inner Diameter is 1 3/4" inch

  • UCF209-28 Ball Bearing
  • Flange Mounted Bearing
  • Bolt Size: 1/2" inch
  • Shaft Diameter: 1 3/4" inch
  • Basic Load (Cr): 34.1 KN
  • Basic Load (Cor): 21.3 KN
  • Bearing No: UC209-28
  • Housing No: F209
  • Quantity: 1 Bearing


Dimensions (inches)
a e i g l s z Bi n
5-13/32" 4-9/64" 55/64" 23/32" 1-1/2" 5/8" 2-1/16" 1-15/16" 3/4"
