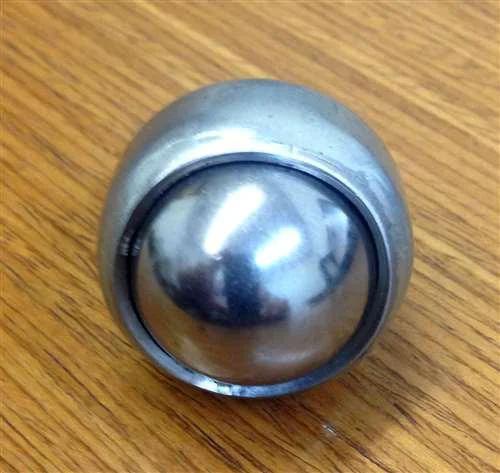

1-1/2" Stud Type Ball Transfer CSBT-1-1/2" CS/SS 3/8" Threaded Stem

CSBT-1 1/2 CS/SS Stud Mounted Ball Transfer Unit, Main Ball is 1 1/2" Inch, 1-1/2" Main ball rotates on (90) 3/16" support balls, CSBT-1 1/2 CS/SS stud-mounted ball transfer is a heavy duty ball transfer unit, capable of supporting as many as 250 pounds (per unit). CSBT-1 1/2 CS/SS features a 1 and 1/2 inch ball bearing resting on 90 individual support bearings and is ideal for most industrial transfer applications. CSBT-1 1/2 CS/SS ball transfer can also be used in a variety of non-industrial applications, including retail store displays and airport luggage transfers.

• CSBT-1 1/2 CS/SS Bearing
• Ball Transfer unit
• Ball Material: Stainless
• Housing Material: Carbon Steel
• Support Ball: Stainless
• Threaded stem size: 3/8"-16
• Load Capacity: 250 LBS
• Quantity: 1 Bearing
• Brand: Hudson Bearings
• Made in The USA

Features

• Stud-Mounted, Steel and Heavy duty
• Ball support cup is hardened and plated
• Protective cover assures low torque and longevity
• Neoprene cushion permits vertical deflection and assist with uniform load distribution
